Building

Historical data
The main building of the Northern Theatre is the second theatre building in Satu Mare. Its foundation stone was laid down on May 18, 1889. The building was handed over on January 14, 1892, as part of a grand opening. Its designer was Voyta Adolf from Pápa, the construction was led by Szikszay Lajos, an architect from Debrecen. The interior decoration was made by Spannraft Lajos and Hirsch Gyula.

The plot of the theatre, on the side facing Vár street (later János Hám, now Horea), was surrounded by an ornate cast-iron fence, and the magnificent decorative gate with a locke. The tasteful, well-executed decorative lattice was made by a local master, Einhorn Márton. In many respects, our second stone theatre was first in the country, for example, in that electric lighting already raised the light of the performances here. The first power plant in Satu Mare was built next to today's artist's entrance. At first, the theatre was supplied with this power generator, and gradually the surrounding streets were also involved. So, we can say that in Satu Mare, in addition to the light of culture, the theatre also brought the light of modern public lighting to the inhabitants of the city. (Csirák Csaba)
Description
To the one-storey theatre building, was glued 4 side pockets. Stage is 11 meters wide (usable surface), 12 meters deep, the width of the stage opening is 9.5 meters.

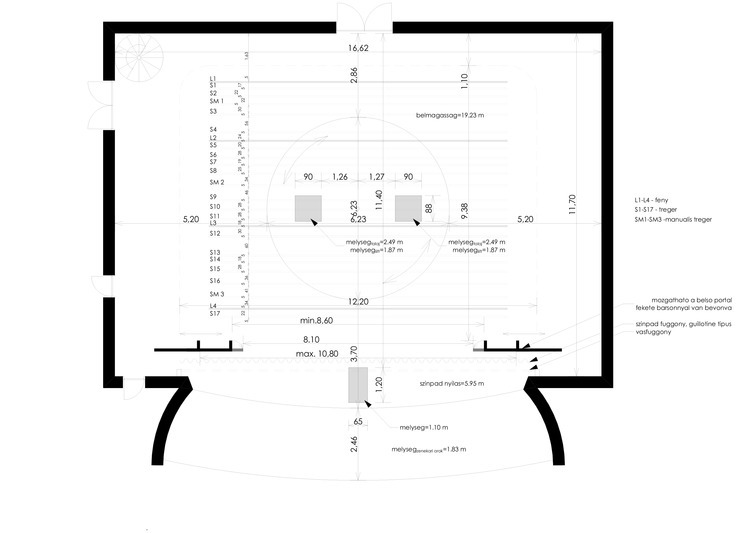

The main stage (technical drawing)

A nagyszínpad (műszaki rajz) - Scena mare


Its auditorium has 397 seats (with rooster seat).

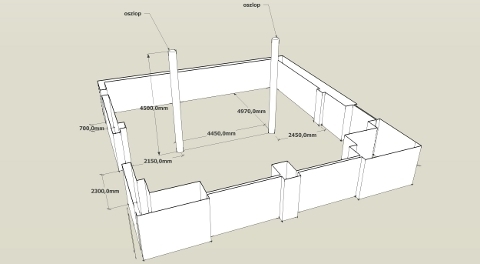

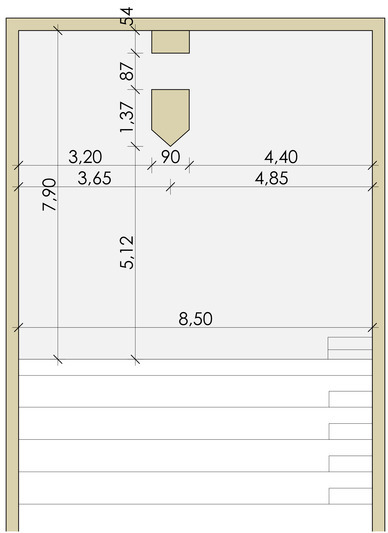

Ács Alajos Studio
The Ács Alajos Studio was created in the immediate vicinity of the theatre, in the ground floor of an old apartment building. Its auditorium is of variable size and location (it can accommodate up to about half a hundred people).

Stúdió - Sala Studio


Alternative venues:

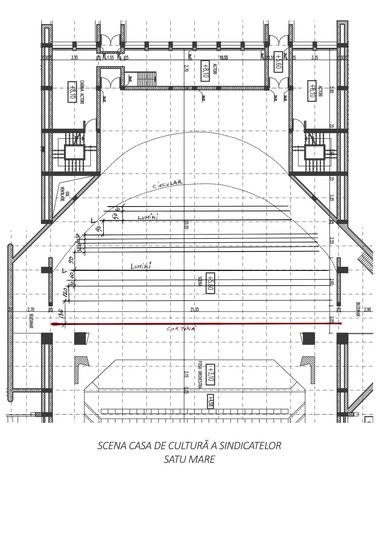

House of Culture of Trade Unions (Main Stage)



House of Culture of Trade Unions (Small Stage)

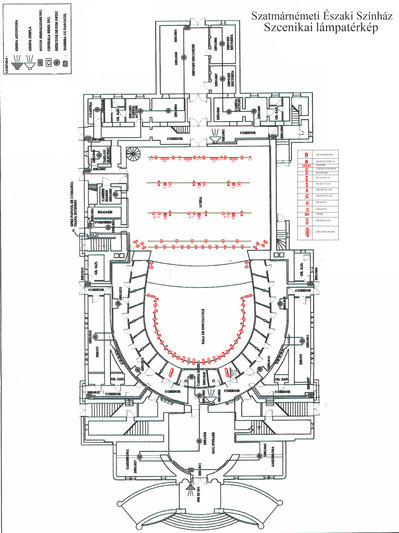

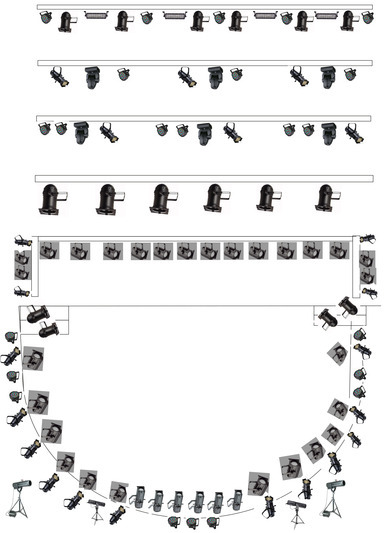

Light Park (Northern Theatre, main Stage)



Auditorium left:
2 pcs PAR 64-1000 W
2 circuits 1=16 A x 2
Auditorium right: 2 pcs PAR 64-1000 W
4 circuits 1=16 A x 4
Auditorium console:
12 pcs 2000W Aria PC
12 pcs Profilspot zoom 750 W
6 pcs spot 18-36 1200 W
9 pcs PAR 64 LED - 3 W
II. floor, auditorium:
4 pcs. head light
2 pcs. Pacific followspot
2 pcs. Canto 1200 msd/msr
Orchestra pit:
2 pcs. controlled circuit
Stage:
stage floor circuit (left)
stage floor circuit (middle)
stage floor circuit (right)
Left tower:
2 pcs. RTC 25-50 575 W
2 pcs. 1000 W Aria PC
Right tower:
2 pcs. RTC 25-50 575 W
2 pcs. 1000 W Aria PC
Bridge:
12 pcs. 1000 W Aria PC
1. Lightning bars:
6 pcs. PAR 64 1000 W 1=16 A x 6
6 pcs. controlled circuit
2. Lightning bars:
3 pcs. ETC 750 W
3 pcs. Vizi Beam 5RX
6 pcs. PAR 64 LED 3W
6 pcs. controlled circuit
3. Lightning bars:
3 pcs. ETC 750 W
3 pcs. INNO Z19
6 pcs. PAR 64 LED 3 W
6 pcs. controlled circuit
4. . Lightning bars:
7 pcs. controlled circuit 1=64 A
4 pcs. LED PMB 4 COB
Stage 1 PAD:
4 pcs. controlled circuit
Stage 2 PAD:
4 pcs. controlled circuit

Sound Technology (Northern Theatre, main stage )
Mixing desk:
-Soundcraft Performer SI3
-32 mic + 8 line input
-16 outgoing, 14 auxiliary
-4pcs. Lexicon Fx processor
Sound lines:
-32 pieces
-16 pcs. in the orchestra pit
Speakers:
-Outline Eidos 118s ………………………… 2pcs.
-Outline Eidos DVS 15P …………………… 6pcs.
-Outline Eidos 15 ……………………………… 8pcs.
Amplifiers:
-Outline M5000-4 ……………………………… 6pcs
Processor:
-Outline Genius M412
Players:
-Denon DN-300Z cd player …………… 2pcs.
-PC …………………………………… 1pc.
Wireless microphones:
-Senheiser EW 100 G3 ……………………… 3pcs.
-Senheiser EW 100 G3 microport …… 12pcs.
Microphones:
-Shure SM 57 ……………………………………… 5pcs.
-Senheiser drum set ……………………………… 1pc.
Projectors:
-Christie DXG 1051-10000ANSI ………… 2pcs.
Projection screens:
-8x10 (HxL) ………………………………………… 1pc.
-3x5 (HxL) …………………………………………… 1pc.
